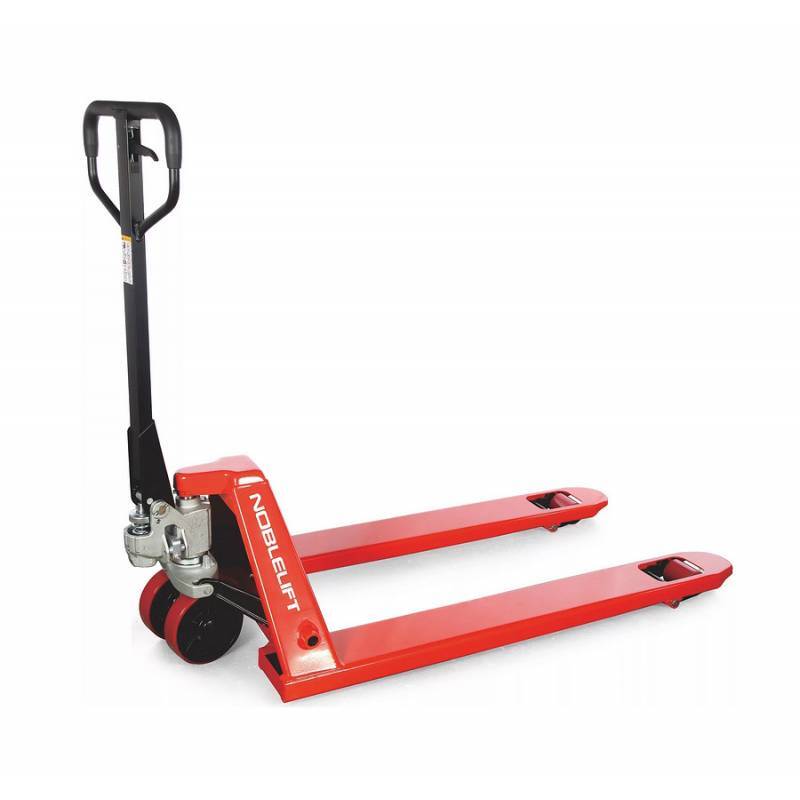

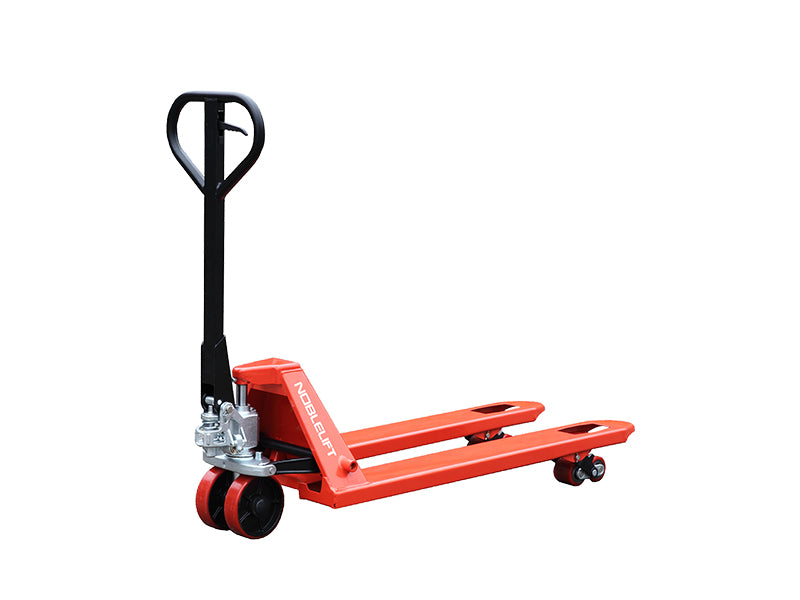

Pallet Jack (685mm Wide) - 2500kg
AC25-685
- Rated capacity2,500 kg
- Fork length1,150 mm
- Fork width685 mm
- Fork section160 × 50 mm
- Lowered height85 / 75 mm
- Raised height200 / 190 mm
- Unit weight73–92 kg
- PumpTotally sealed hydraulic pumpSlow-lowering hand valve
Show 2 more specsShow fewer specs
- Handle3-position
- FeaturesEntry and exit rollersGrease fittings
The 685 mm wide pallet jack is the full-width model in our 2500 kg manual range, with forks spread to support standard pallets close to their outer bearers. That wider footprint keeps heavy, tall or uneven loads more stable, making it the everyday workhorse for loading docks, transport depots and distribution warehouses.
Choose 685 mm when most of your stock arrives on standard pallets; step down to the 520 mm or 450 mm widths only if pallet openings or aisles are restricted. Browse more in our pallet jacks range.
